Coordinate Measuring Machines (CMM)

Reliable and high-quality coordinate measuring technology

Discover our CMM portfolio

In production, we work with a wide variety of components every day. The are ever greater demands on performance and quality. This also has an impact on quality standards in industrial measurement technology. Coordinate measuring machines, or CMMs for short, are ideal for precisely measuring workpieces in any measuring environment. With a coordinate measuring machine from ZEISS, you can master your daily measurement challenges with high degree of precision and can rely on ZEISS’ many years of expertise and competence in industrial measurement technology. You too can find the right coordinate measuring machine for your area of application in the extensive ZEISS portfolio.

Efficient and precise measurement

Bridge-type CMMs

Bridge-type CMMs are among the most widely used coordinate measuring machines. The bridge-type CMMs from ZEISS are sophisticated, coordinated measuring systems – from the measuring device to the sensor system to the measuring software. You achieve precise results in the shortest possible time.

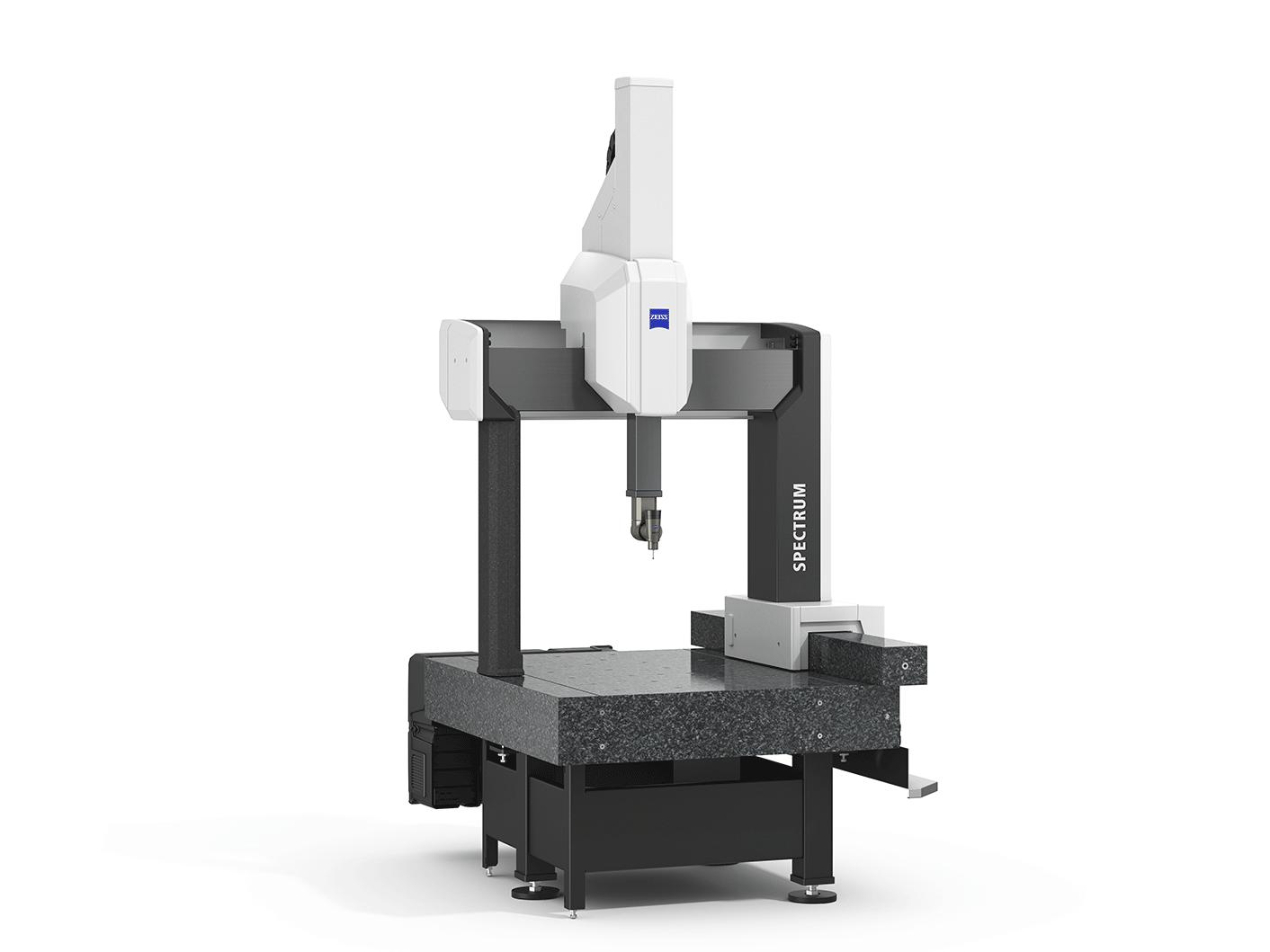

ZEISS SPECTRUM family

Entering the ZEISS CMM world

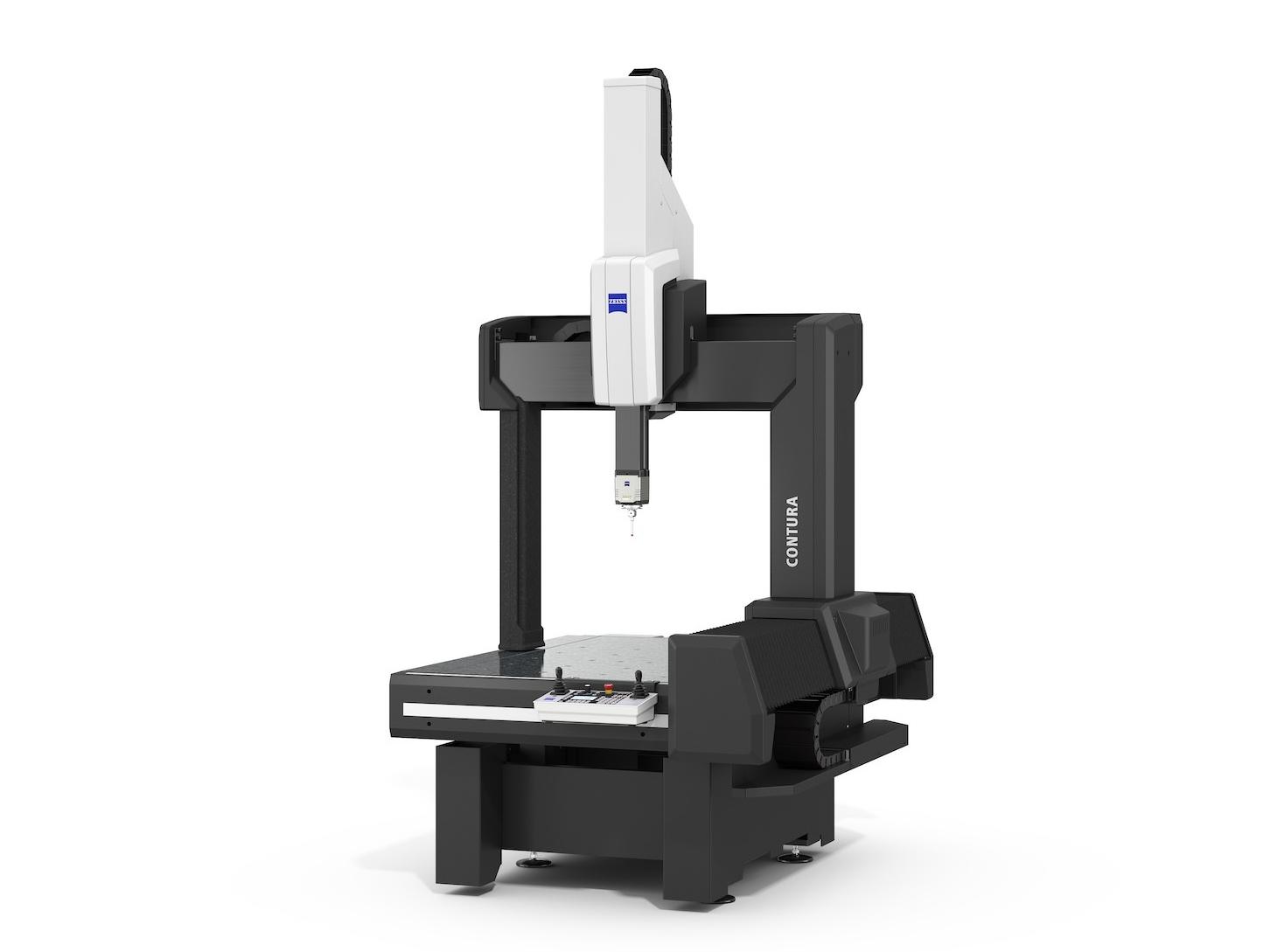

ZEISS CONTURA

For flexible measurement tasks in the performance class

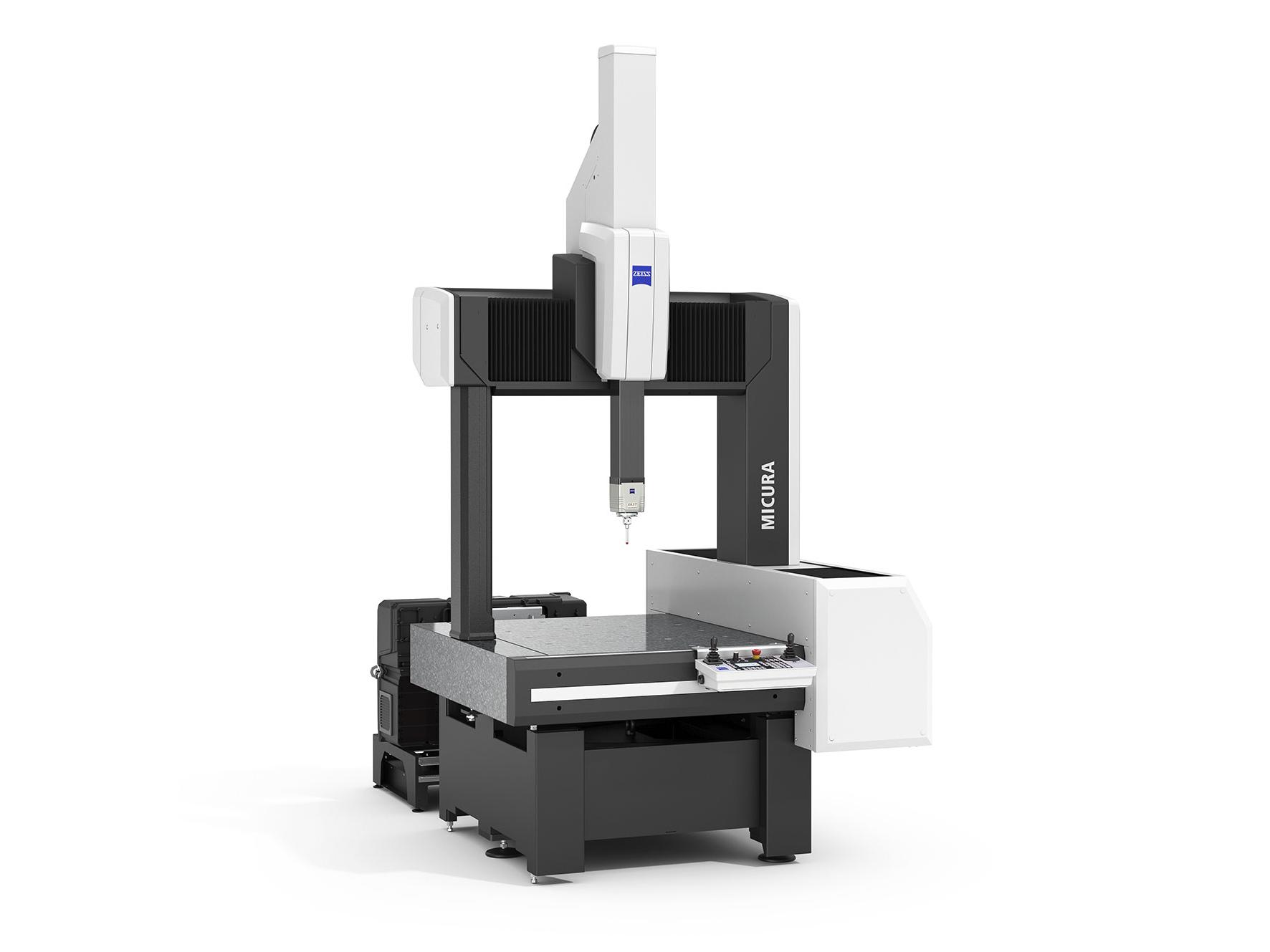

ZEISS MICURA

For small components with tight tolerances

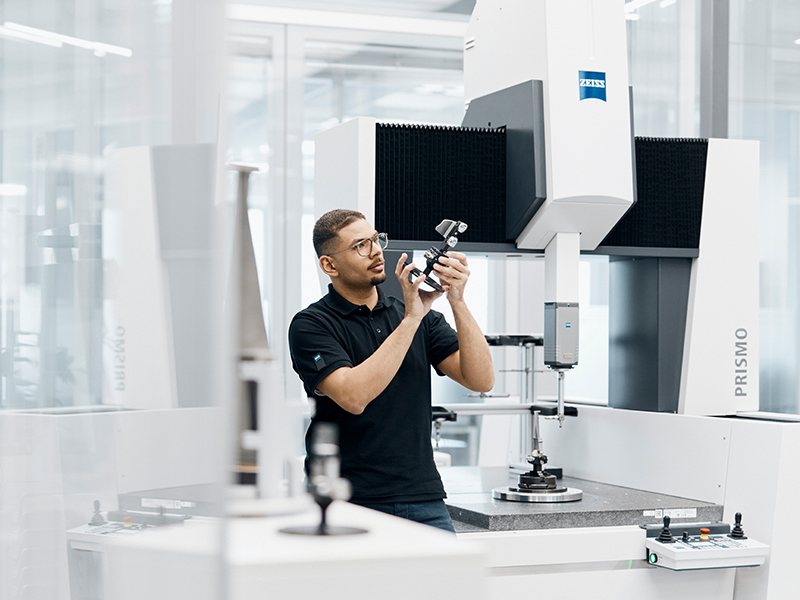

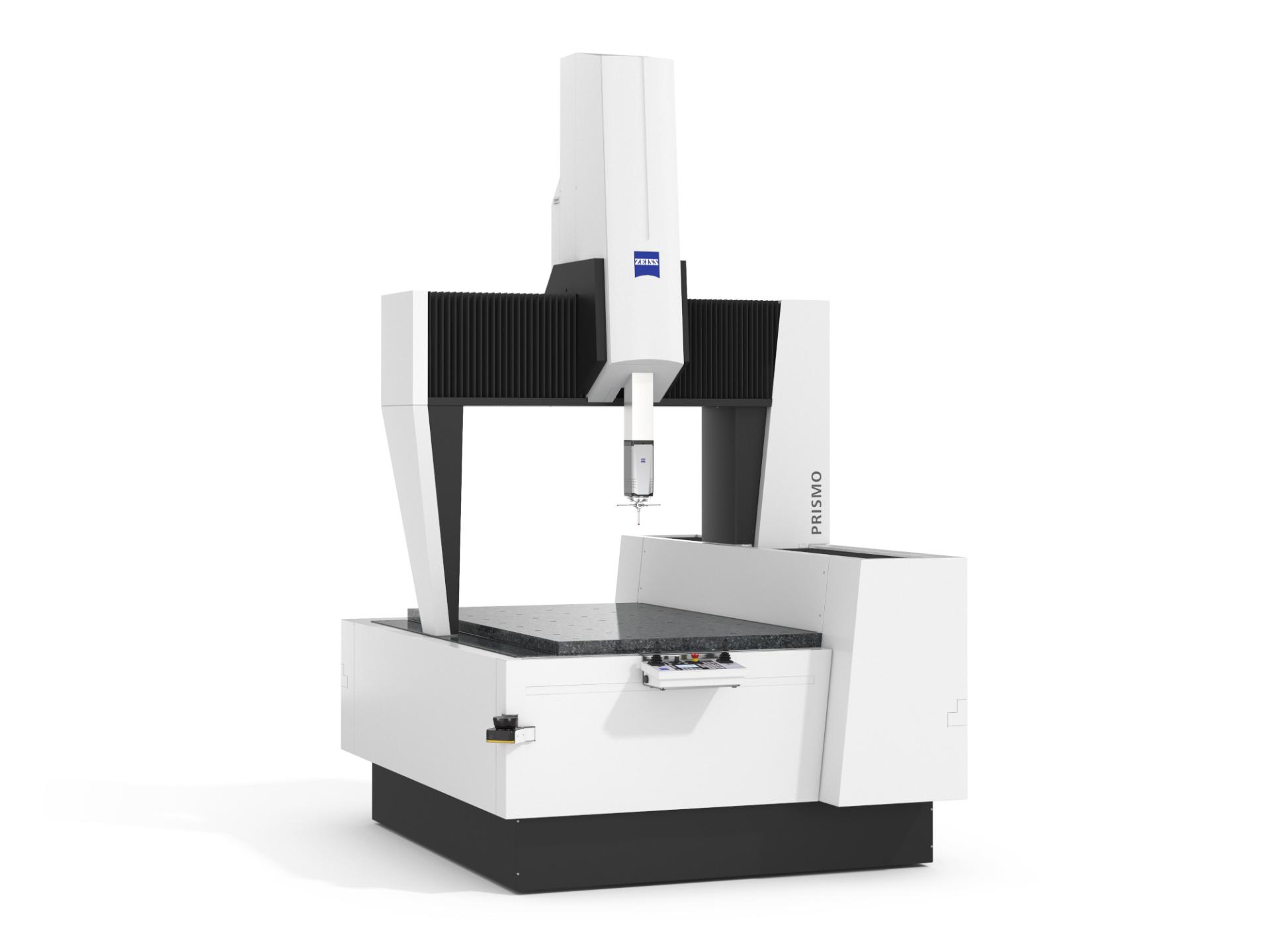

ZEISS PRISMO family

For flexible measurement tasks in the precision class

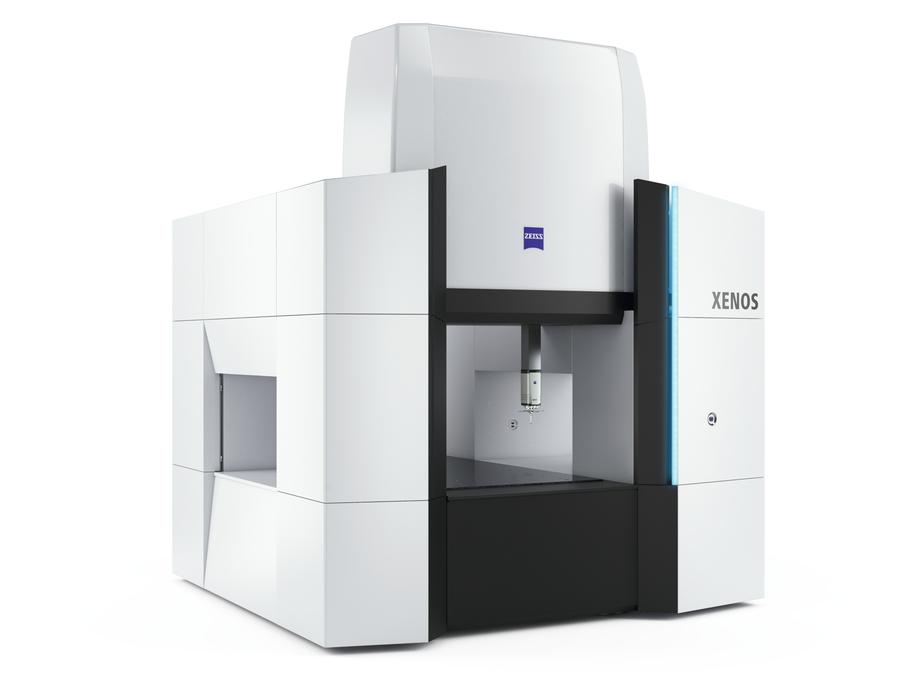

ZEISS XENOS

The reference device

Producing and measuring at the same location

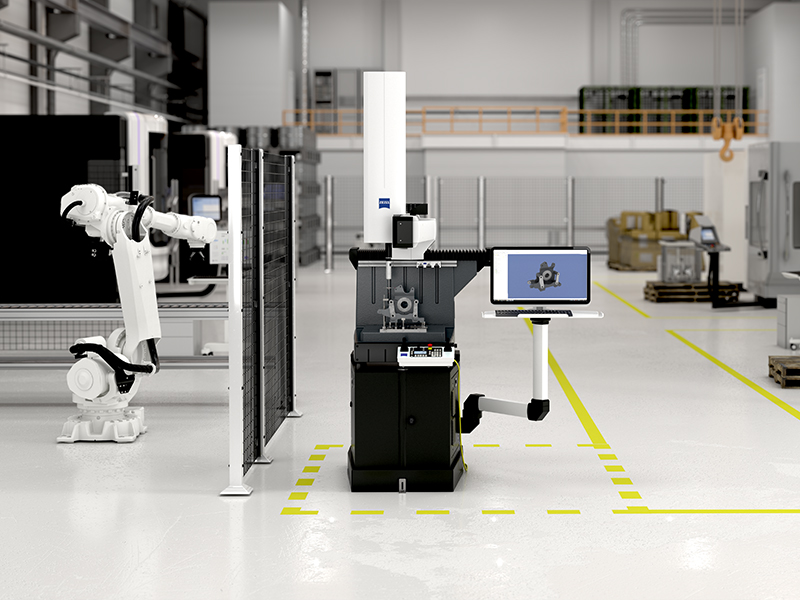

Production measuring machines

Production measuring machines enable quality assurance where production takes place. This maximizes performance and efficiency. Our production CMMs are designed for high loads and can be used in harsh production environments – at up to 40°C.

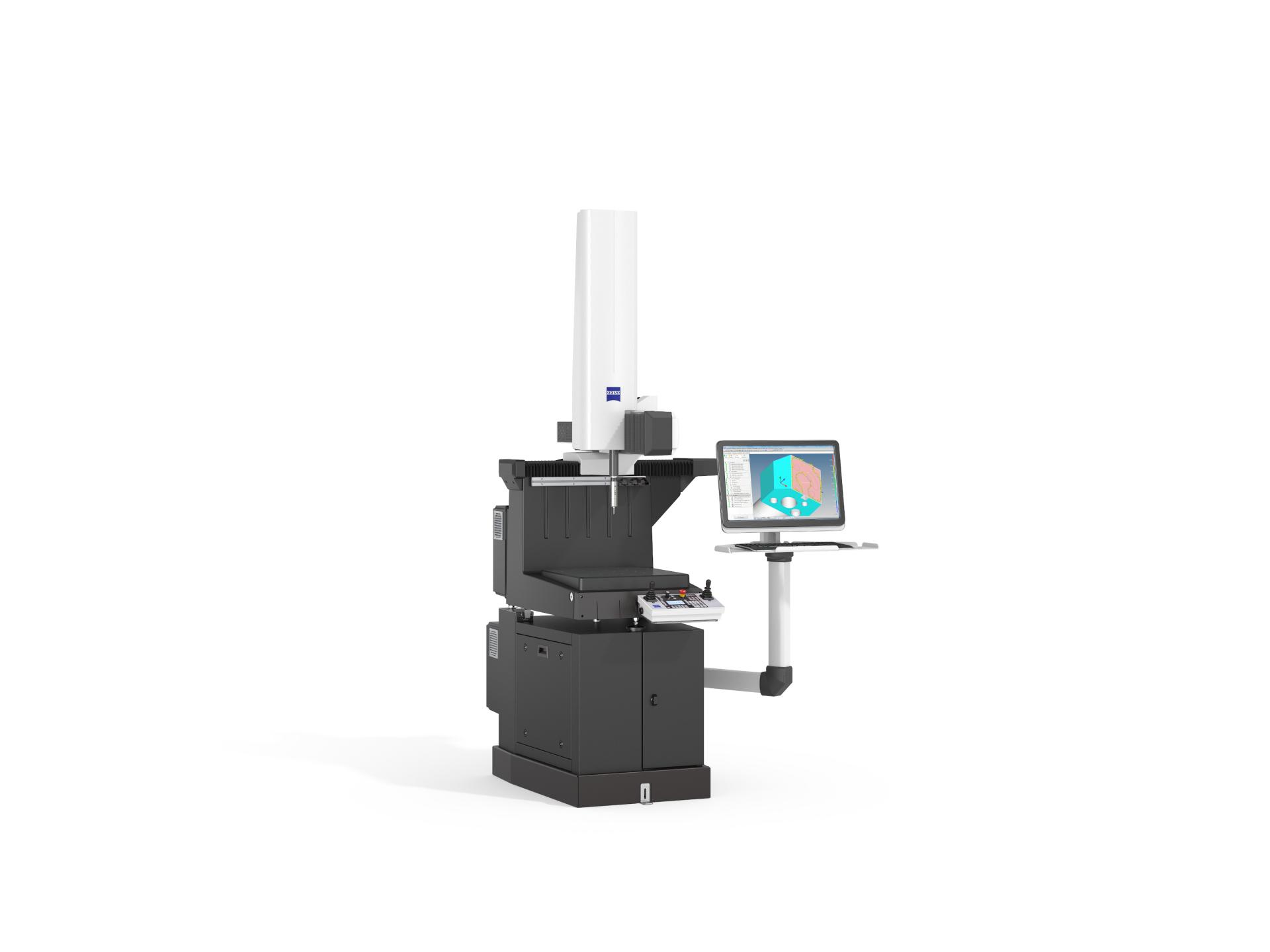

ZEISS DuraMax

For small components with medium tolerances

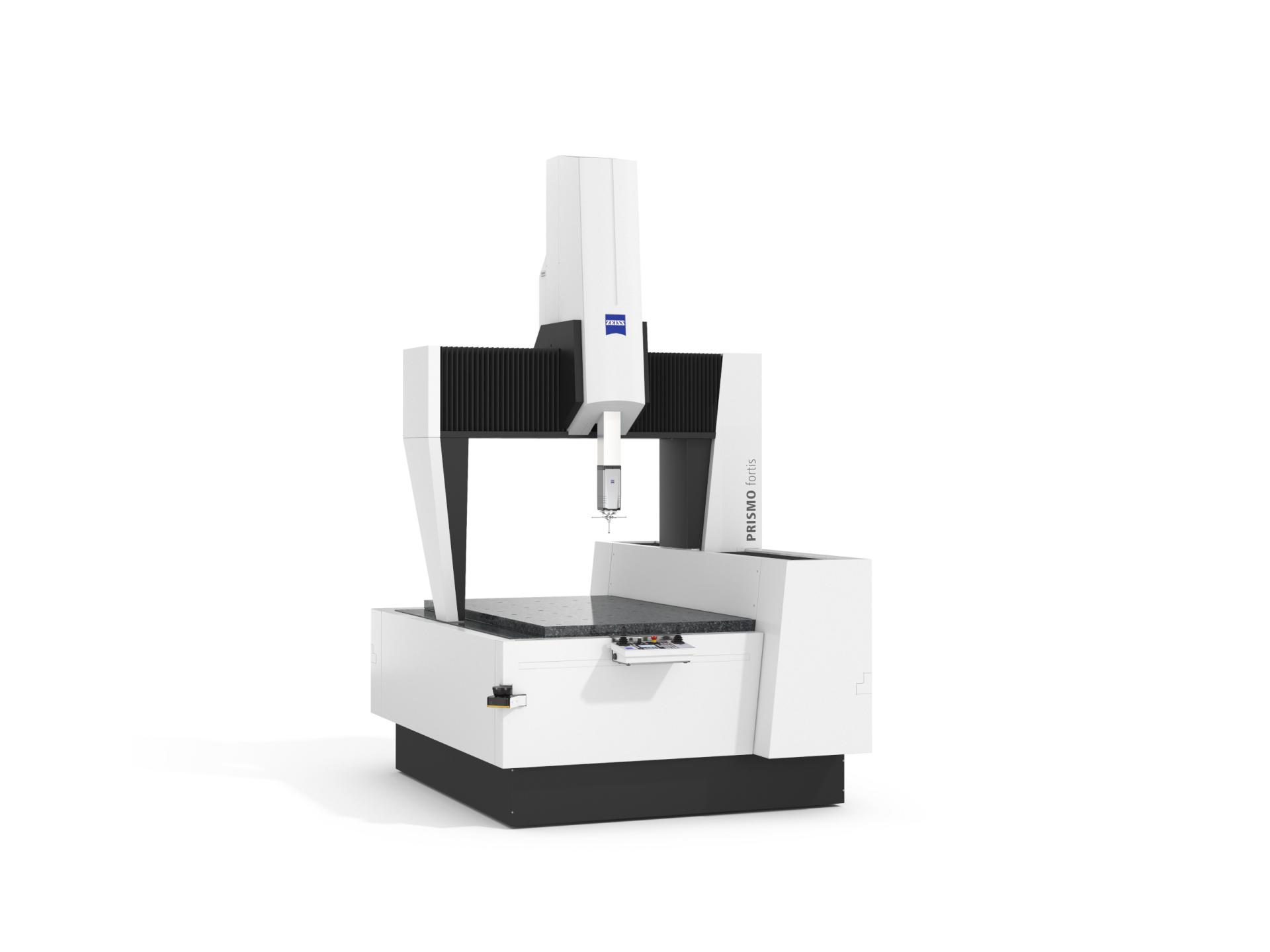

ZEISS PRISMO fortis

For flexible measuring tasks with maximum precision in any environment

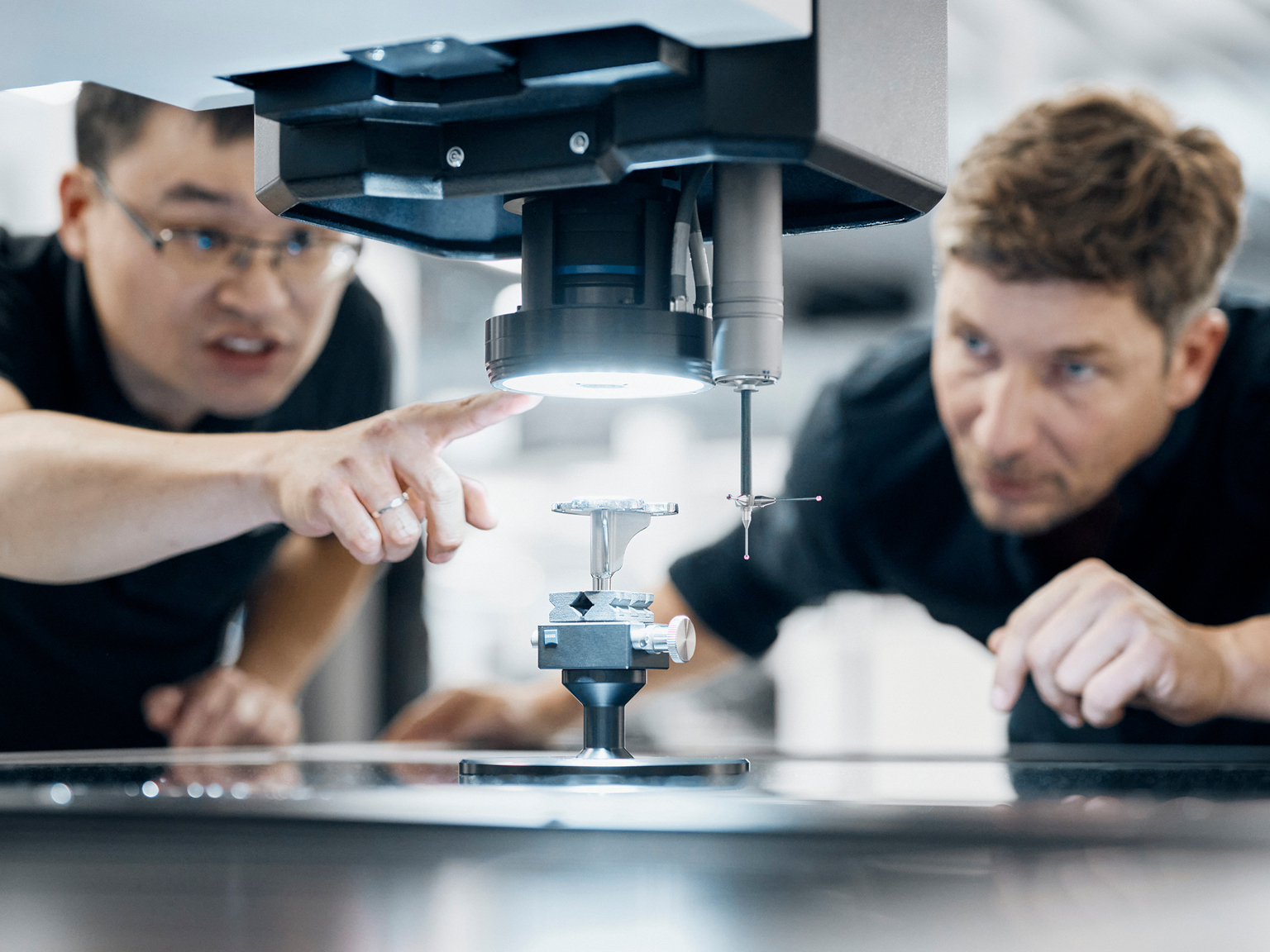

For non-contact measurement

Vision measuring machines (VMM)

A wide variety of applications require non-contact measurement – with high precision at the same time. The products in the ZEISS Optical Series enable non-contact optical measurements as well as multi-sensor applications using tactile and other probes.

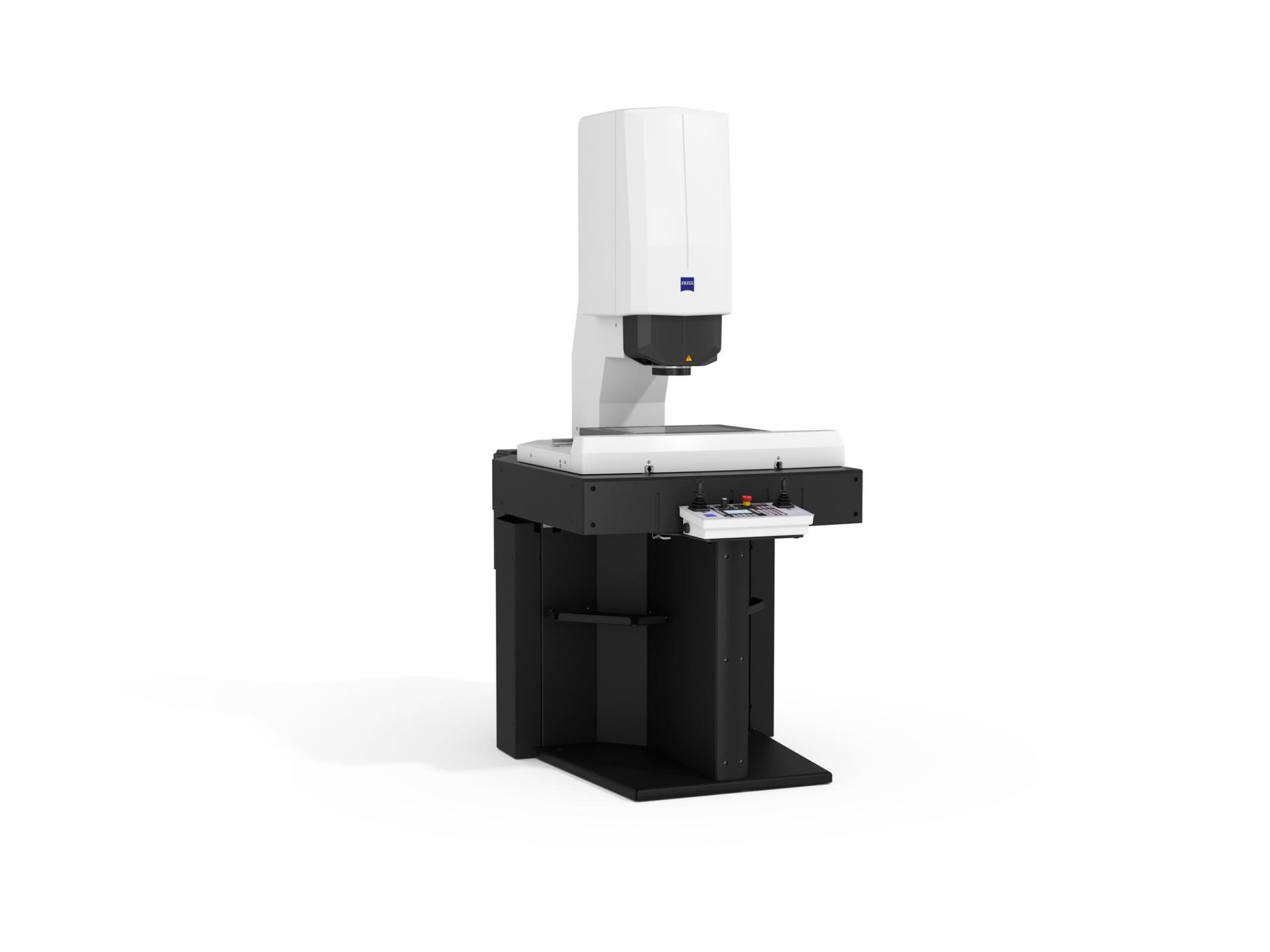

ZEISS O-DETECT

Entering the world of optical measurement technology

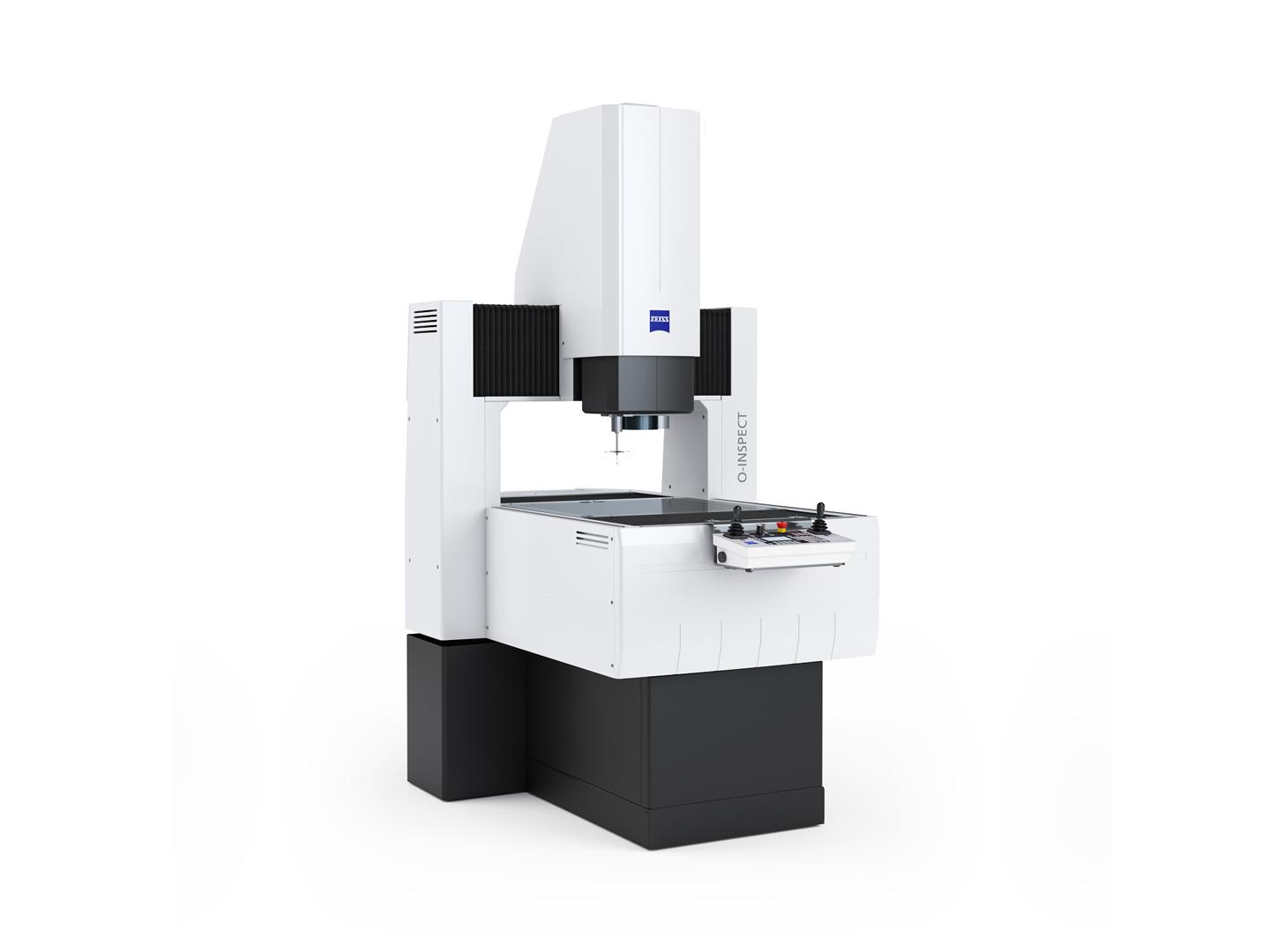

ZEISS O-INSPECT

Multi-sensor technology as standard for high flexibility

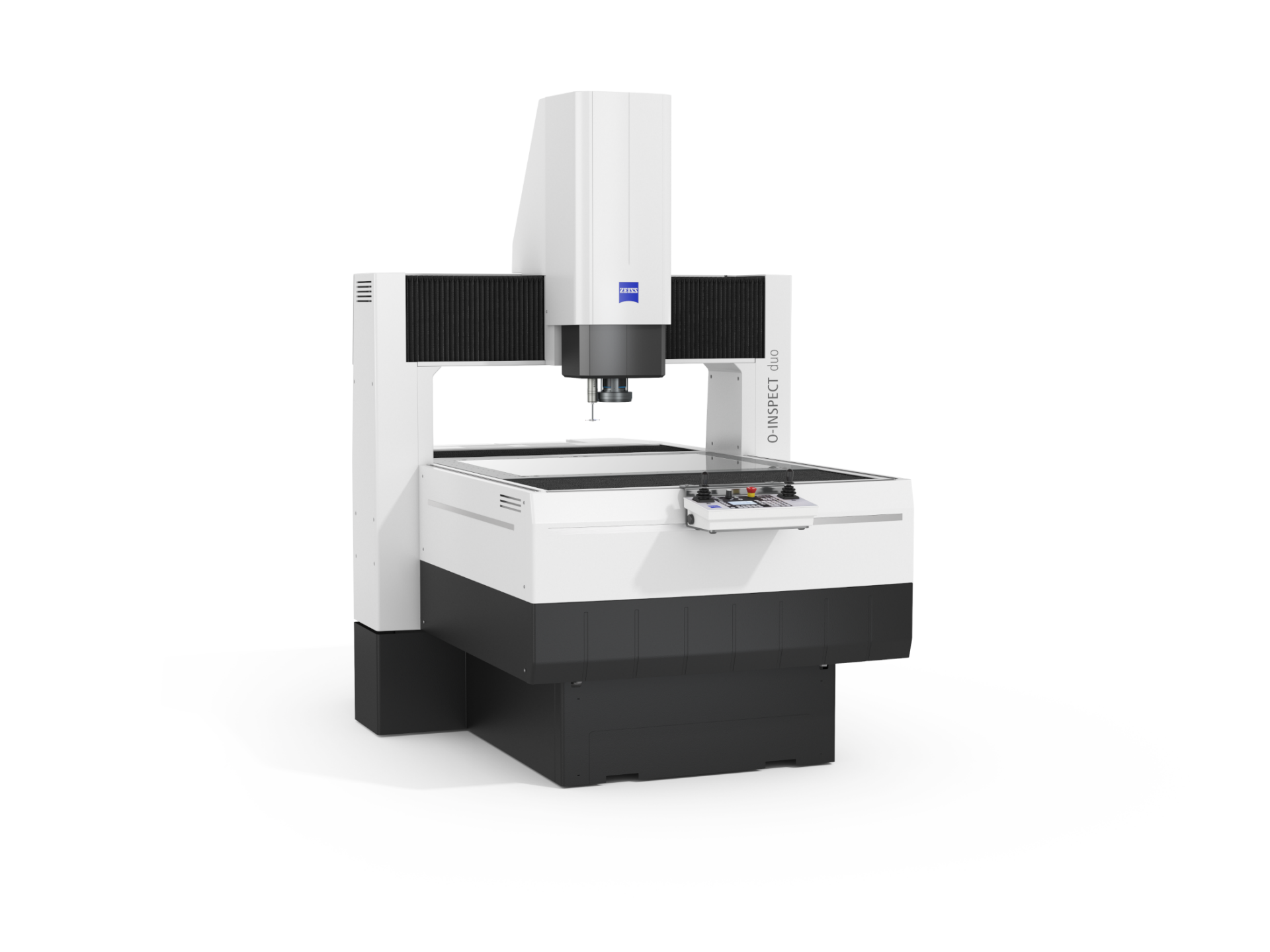

ZEISS O-INSPECT duo

Microscope and measuring device in one

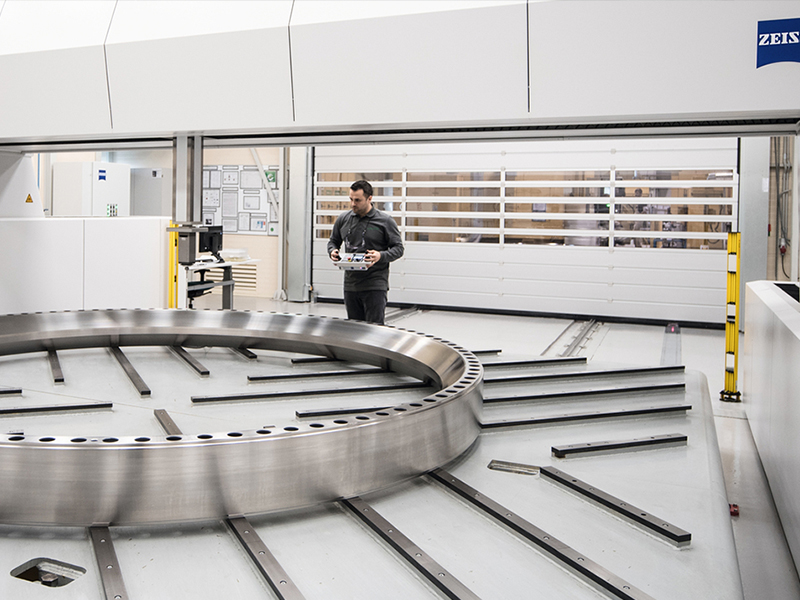

For testing large-volume workpieces

Large coordinate measuring machines

With the gantry CMMs from ZEISS, even extremely large-volume workpieces can be measured with a high degree of precision. The machine design offers robustness, a very wide bearing base on the drive side, as well as high rigidity of the mechanical bearing – for a high degree of basic accuracy and reproducibility of the measurement results.

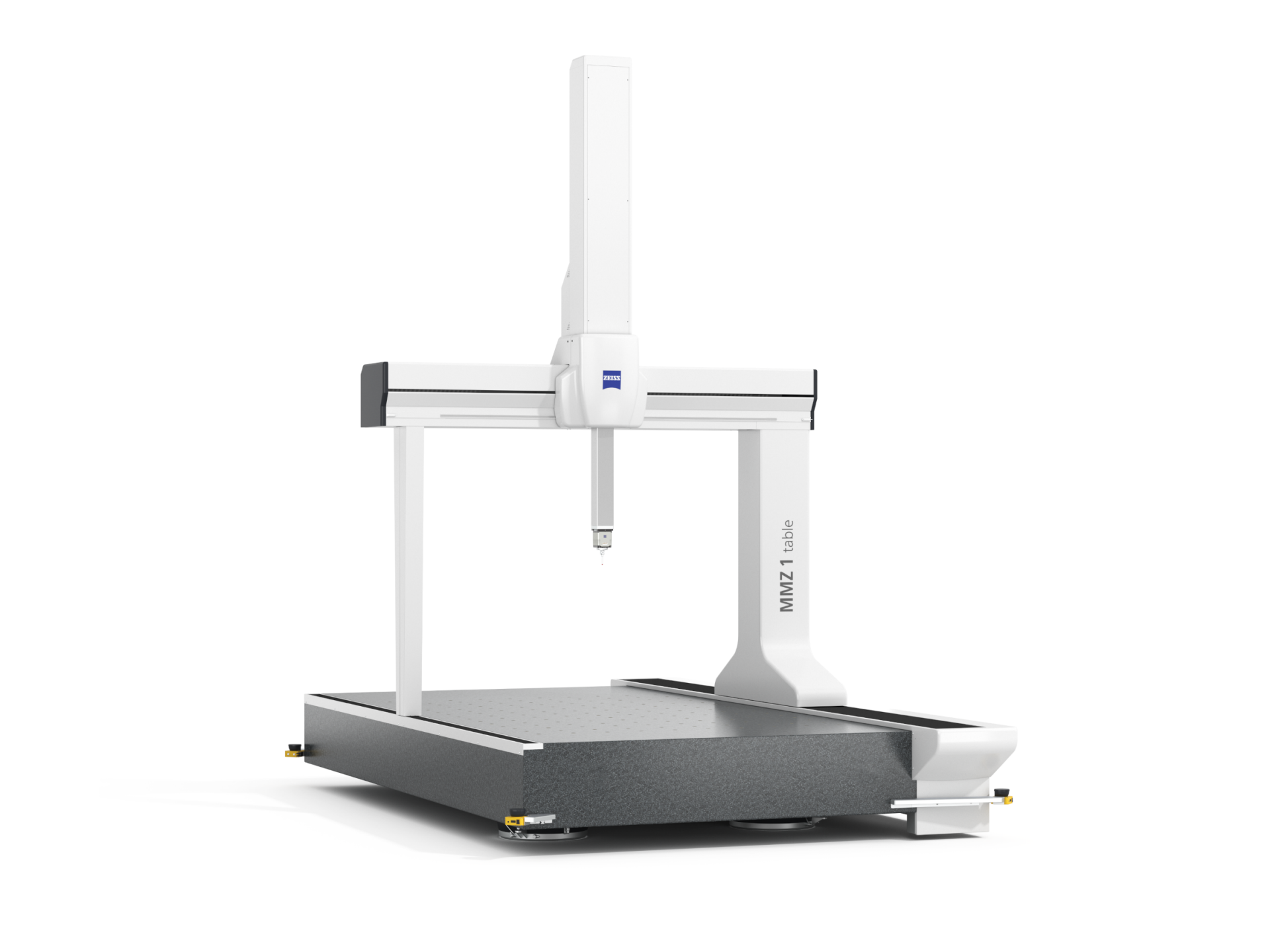

ZEISS MMZ 1 table

Compact gantry design for workpieces weighing up to 5 tons

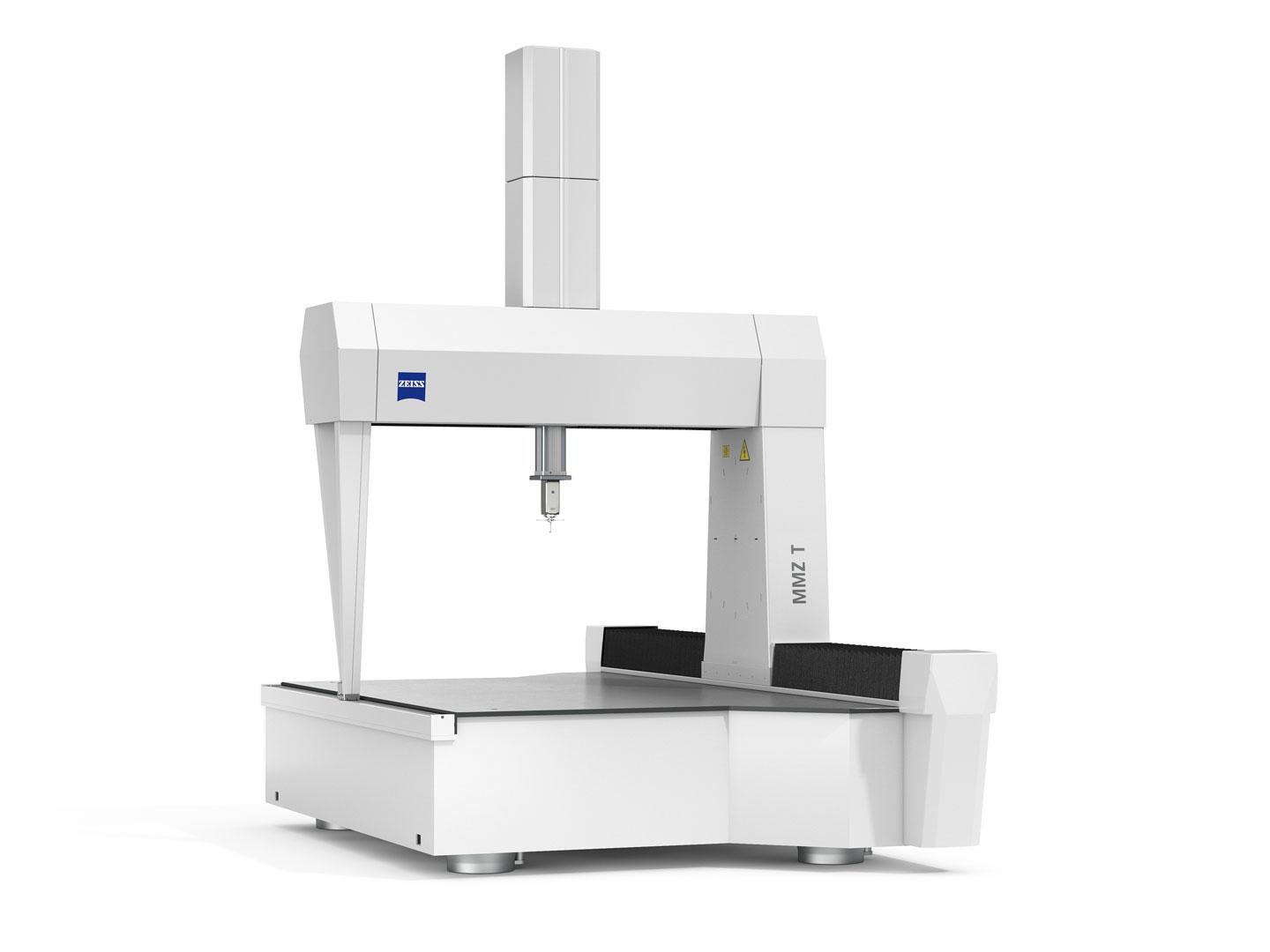

ZEISS MMZ T

Gantry design for very heavy components weighing up to 10 tons

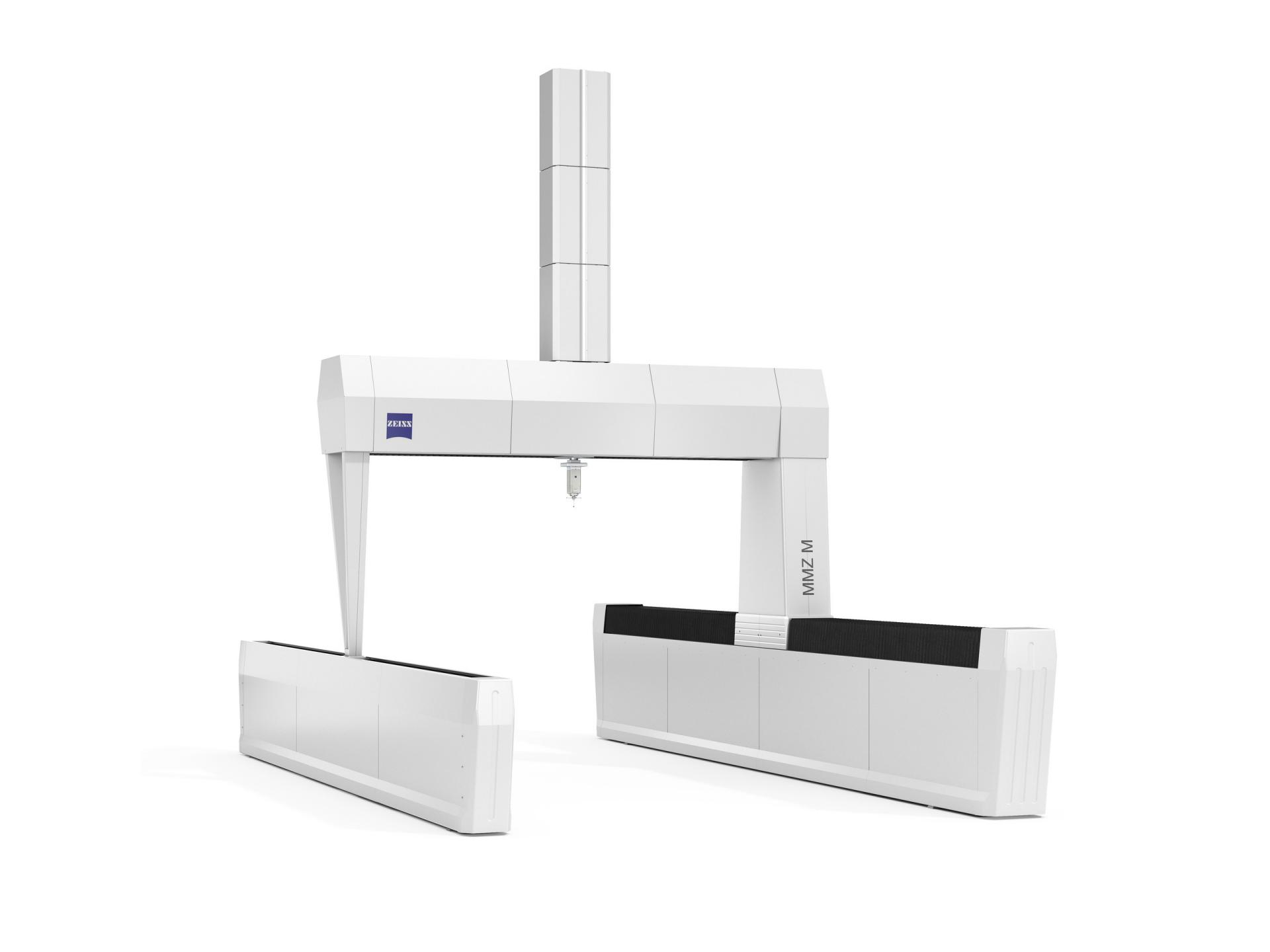

ZEISS MMZ M

For large workpieces with tight tolerances

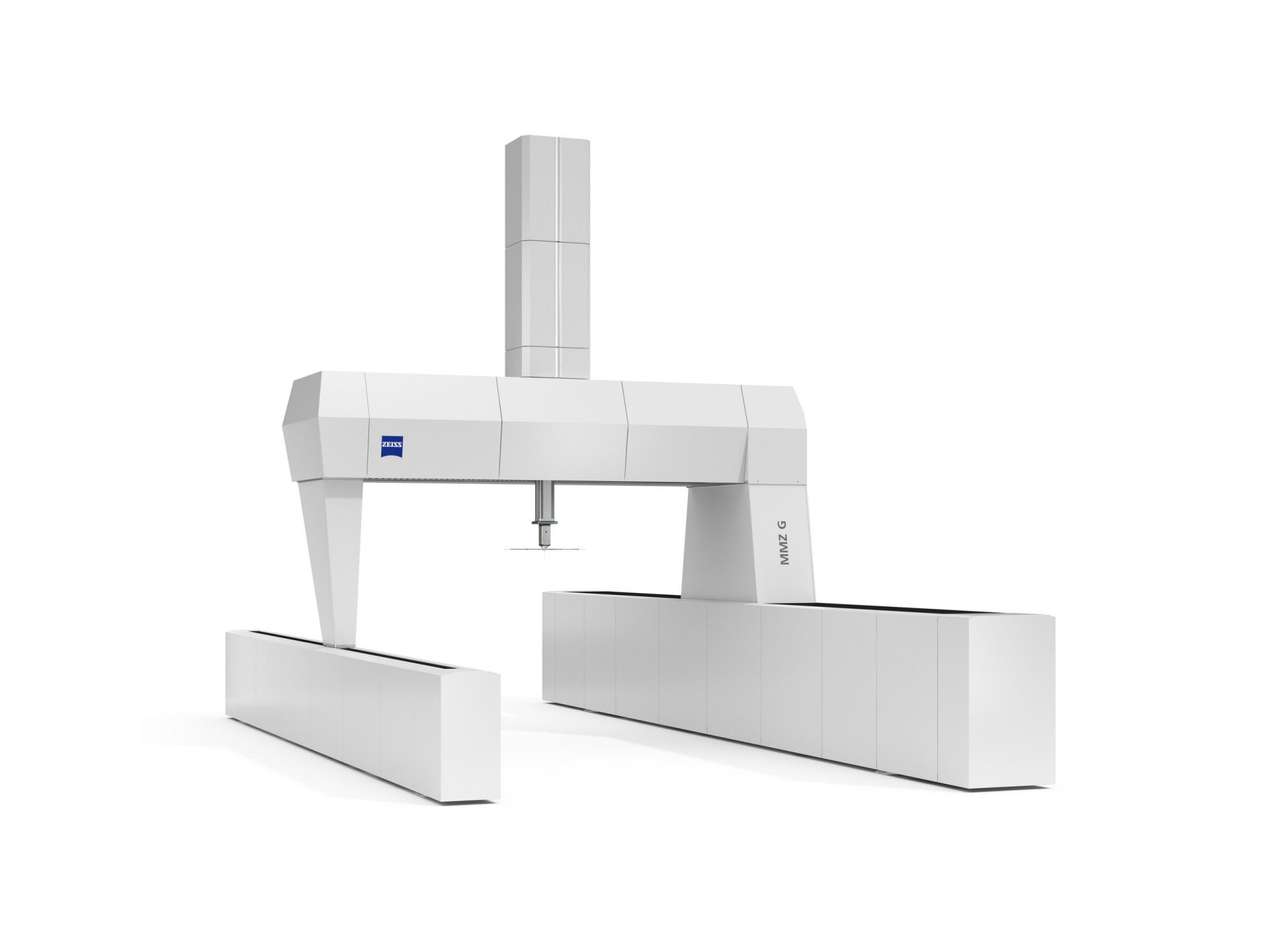

ZEISS MMZ G

For the largest possible configurations with a high degree of precision

For maximum accessibility

Horizontal-arm coordinate measuring machines

CMMs with a single-arm design guarantee excellent measurement results thanks to maximum accessibility and are therefore ideal for testing hard-to-reach characteristics. Due to the very high measuring range, horizontal-arm machines are mainly used for testing sheet metal, cast iron or steel parts in vehicle, aircraft and ship construction.

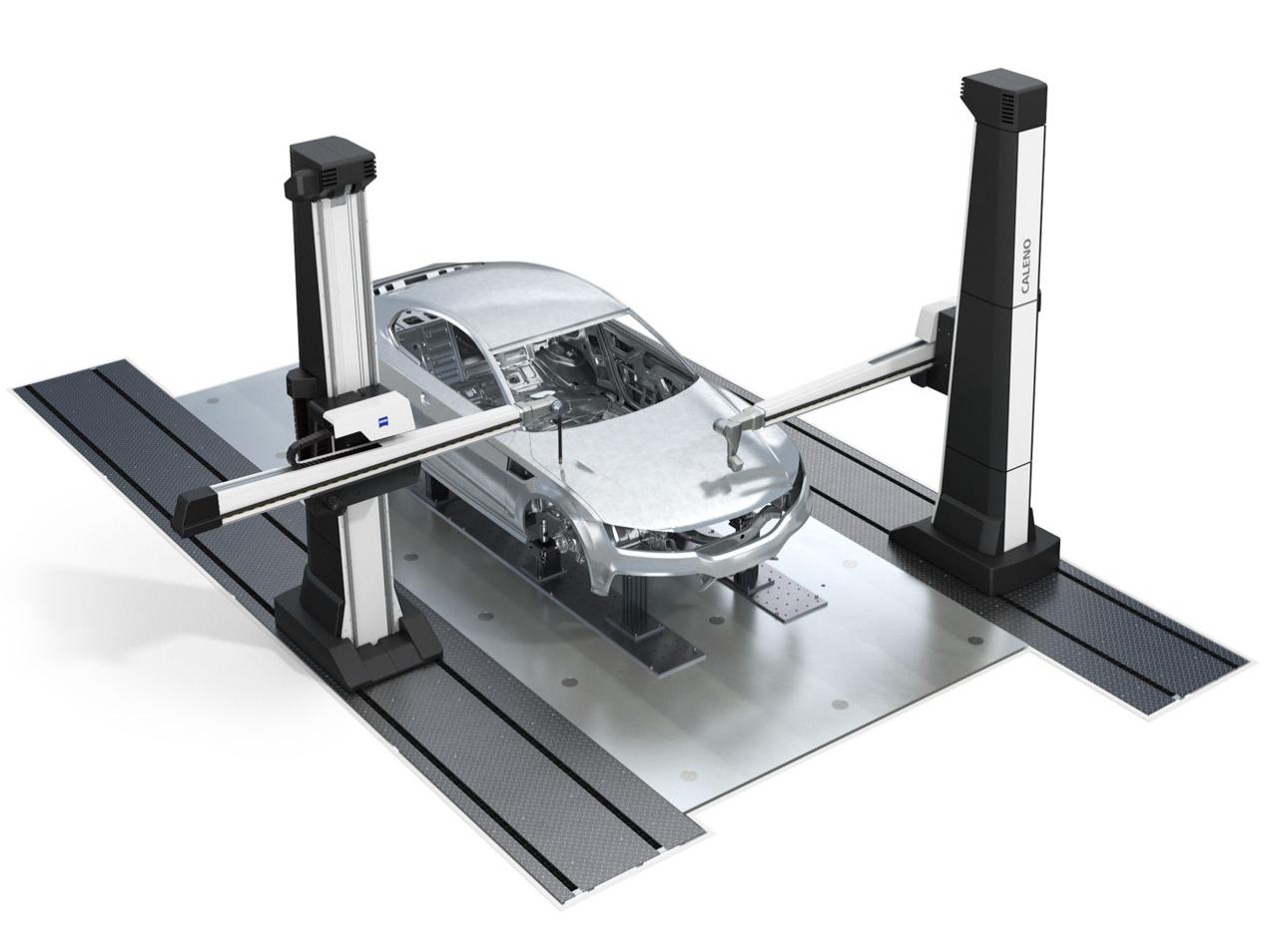

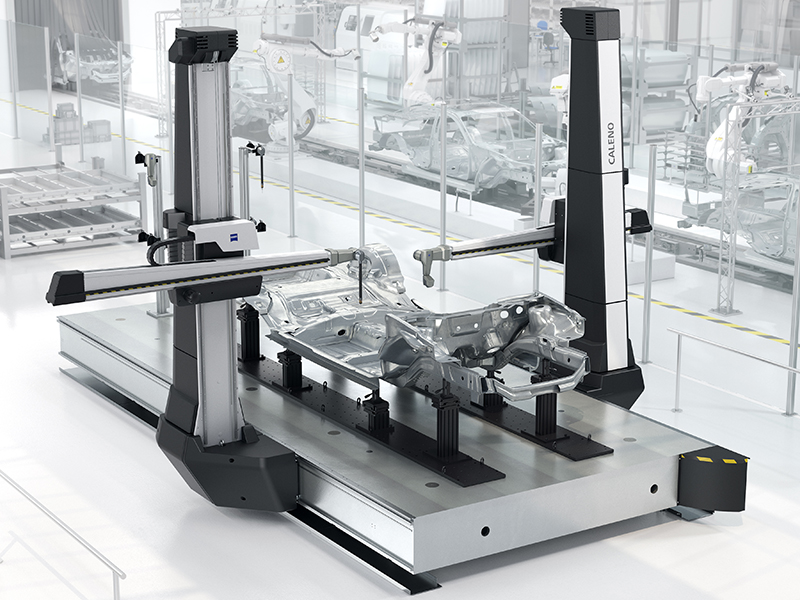

ZEISS CALENO

Multisensor coordinate measuring machine for flexible measurements

Master your measurement challenges with coordinate measuring machines from ZEISS

Benefits at a glance:

Reliable and reproducible results – all ZEISS CMMs are ISO 10360 certified
Compatibility thanks to universal software – all ZEISS coordinate measuring machines and probes can be controlled with the ZEISS CALYPSO software
Meaningful measurement results thanks to the ZEISS PiWeb reporting and statistics software
Extensive range of accessories in original ZEISS quality available in the webshop
Comprehensive service and support in the ZEISS Academy Metrology

Contact

Further solutions and equipment

Various probes, additional accessories and solutions for automation and integration can further enhance the performance of your coordinate measuring machine.

ZEISS Metrology Webshop

Machine accessories

Find the right accessories for your coordinate measuring machine: From probes, extensions and adapter plates to test specimens and much more.

To the webshop

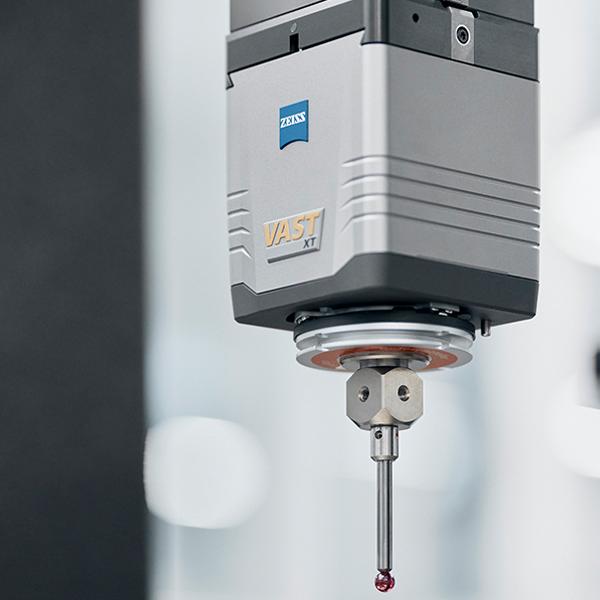

Tactile and optical probes

Versatile solutions for your application

Discover the various tactile and optical probes, as well as probe carriers for the coordinate measuring machines from ZEISS.

ZEISS Integration Series

Unlock the full efficiency of your process

Loading systems, integration and automation solutions: Discover how you can increase your productivity, optimize processes and maximize machine utilization.

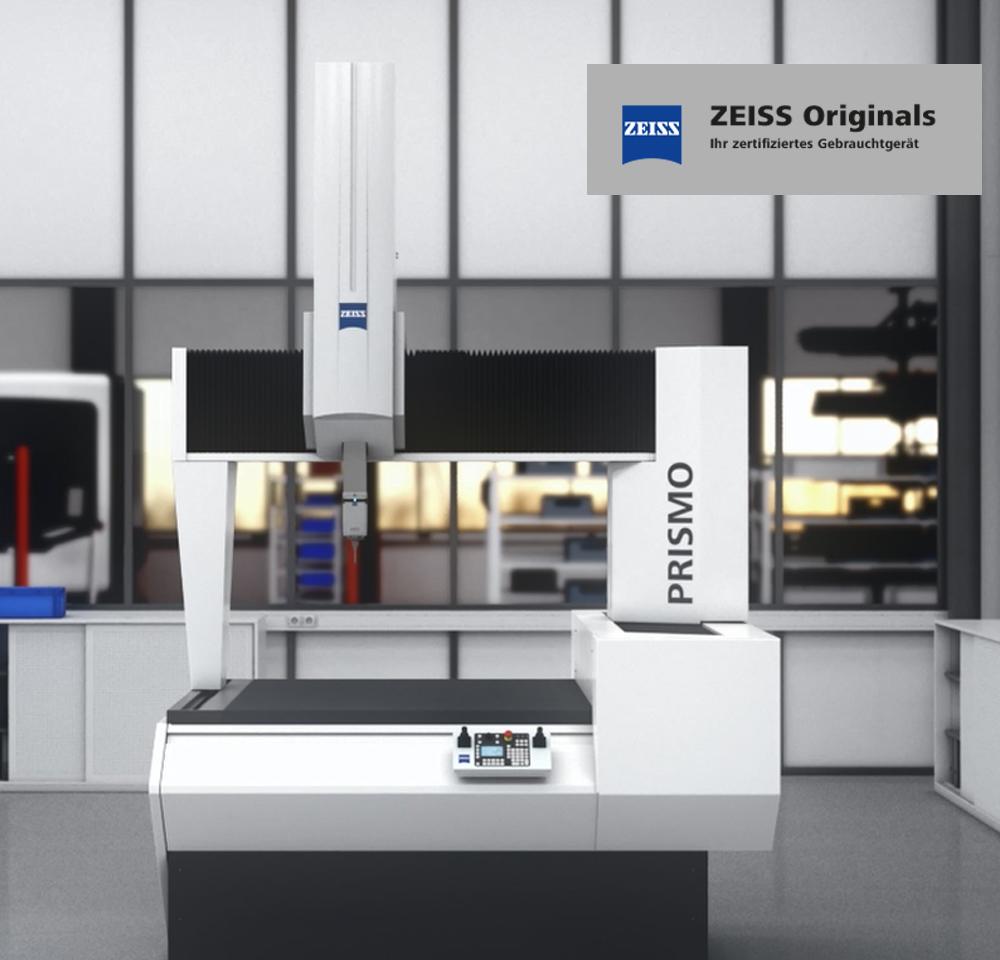

ZEISS Originals

Used and certified coordinate measuring machines

Not only new ZEISS machines deliver outstanding quality and highly accurate results. With ZEISS Originals, we offer a budget-friendly and sustainable solution with refurbished, used coordinate measuring machines for companies that don’t want to compromise on ZEISS quality.
